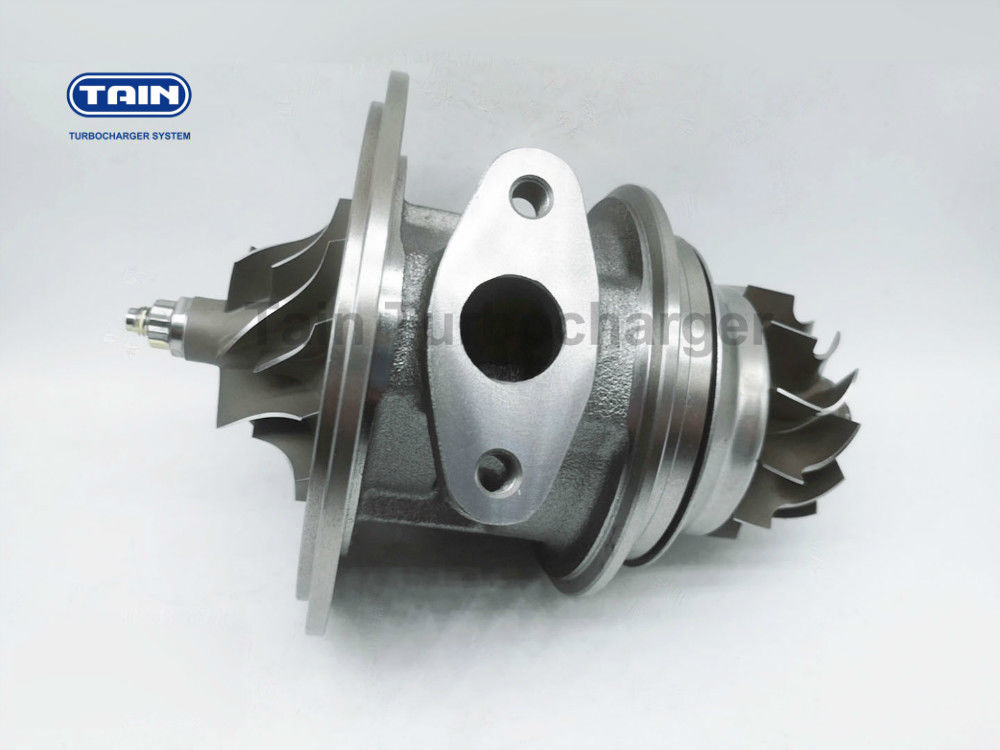

HX25 Turbocharger Cartridge 2835579 4031588 chra
IVECO Truck 2008 NEF 4CYL 2V
DESCRIPTION
—— Model :
HX25
—— Turbo No. :
2834997 2835000 2835579 2835591 2841579
2841580 2841581 2841582 2841583 2841584
2843037 2843038 3538993 3590067 3593370
3593374 3593375 3595526 3596065 3596222
3596584 3596586 3598723 3598866 3599049
3599080 3599242 3599350 3599879 4031458
4031552 4031555 4031556 4031585 4031588
4031652 4031653 4035306 4035393 4035720
4035722 4036087 4036817 4036823 4037187
4037195 4038113 4038792 4038794 4038796
4038833 4038883 4039903 4041367 4041662
4041670 4042226 4042568 4042569 4043176
4044739 4044740 4045324 4045325 4045326
4045361 4045365 4045367 4045798 4046530
4047259 4047514 4047572 4047940 4048364
4048377 4049942 4049990 3592312 3598048
3599065 3599600
—— OE NO. :
504311091 , 2835000
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
IVECO Truck 2008 NEF 4CYL 2V
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 65 |
52 |
9 |
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 44 |
73 |
6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
