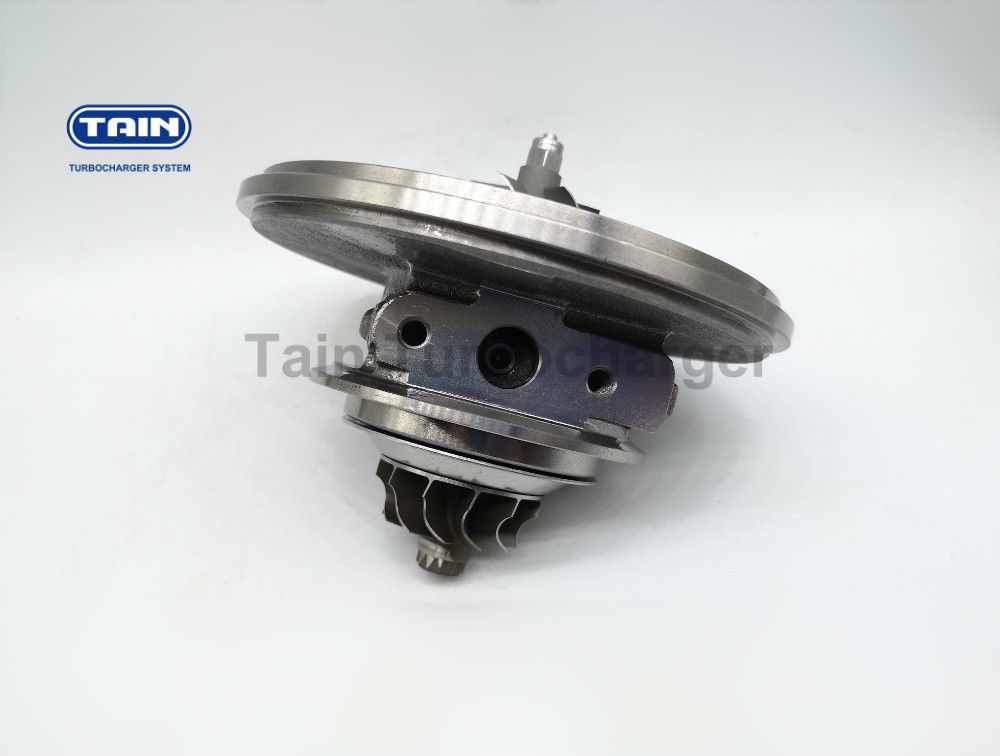

GT1446SZ Turbocharger cartridge 766891-0001 807068-5002S chra Fiat Bravo / Grande Punto
DESCRIPTION
—— Turbo No. :
766891-0001 766891-5001S 784844-0001
784844-5001S 807068-0001 807068-0002
807068-5001S 807068-5002S
—— CHRA No. :
784844-0001
—— OE NO. :
55209152 , 55220699 , 71724449
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Fiat Bravo 1.6 Multijet 1.6L (1,6 JTD 16v E5)
Fiat Grande Punto 1.6 Multijet 105 1.6L (1,6 JTD 16v E5)
Afa Romeo Giuletta 1.6L( 1,6 JTD 16v E5)
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 39 |
32 |
12 |
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 20.9 |
46 |
6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
